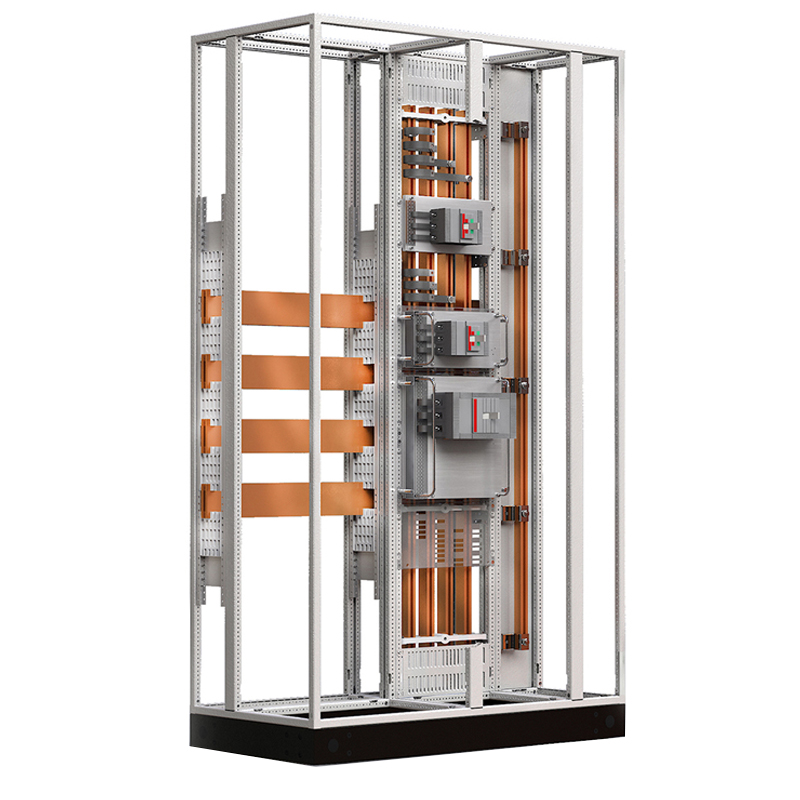

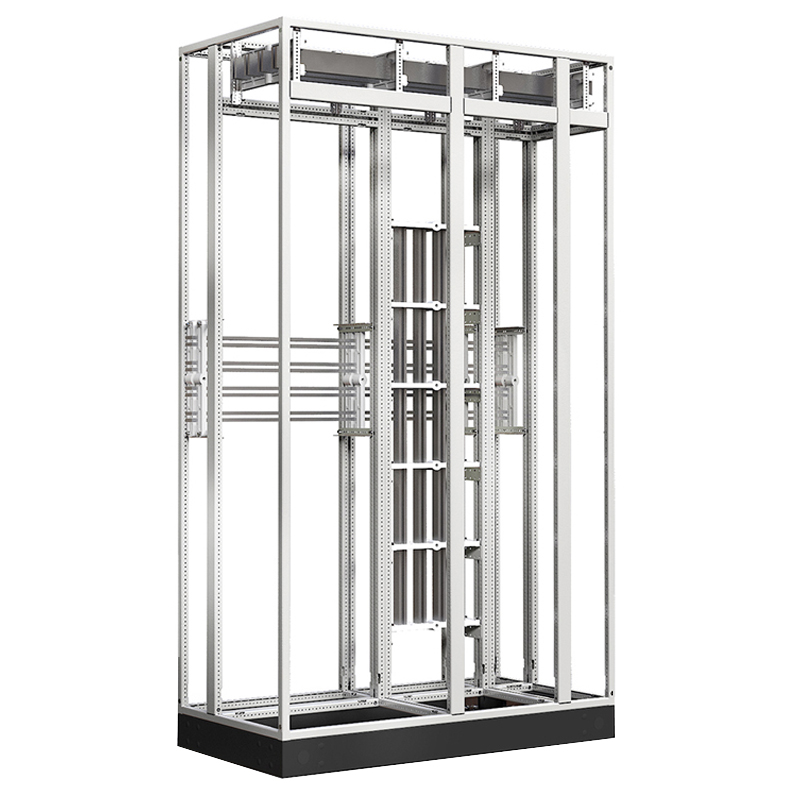

Techno module has most advanced and flexible Design Verified busbar systems. Supports and holders are made from reinforced self-extinguishing material. Busbars systems utilize standard 10mm flat bars and are a clamp-type arrangement, this allows the bars to easily slide into their holders, offering easy assembly, as well as minimum resistance during expansion or contraction.
Both copper and aluminum bars have been tested with busbar holders. Both types have achieved equal test results, with aluminum being the most cost-effective solution.
Fully insulated busbar systems are also available as standard.
Key Features:
• Total solution from 250A – 7100A with a short circuit rating up to 100kA / 1 sec and 50kA / 3 sec
• Main busbar chamber can be in the top, bottom, middle or rear section of the panel
• Vast range of busbar holders for different ratings of busbars systems
• Air natural ventilated busbar systems – no need for forced air ventilation
• Standard 10mm flat copper or aluminum bars
• Arc fault containment testing in accordance with IEC 61641
