- obtained certification in compliance with new international standards IEC 61439-1-2 and IEC 60439-1-2.
- passed the vibration tests required by standard IEC 60068-2-57
- passed the seismic withstand capability test required by standard IEEE Std 693.
• In up to 6300A
• Uimp 12kV
• Icw iki 150kA
• Ipk iki 330kA
• up to IP65
• IK09, IK10
• Form of internal separation up to 4b
• Color RAL7035

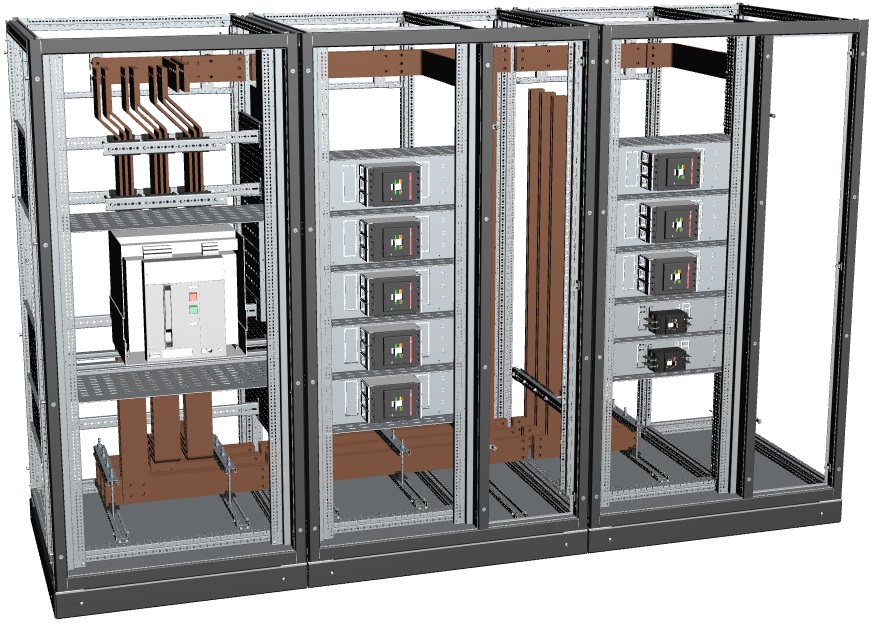

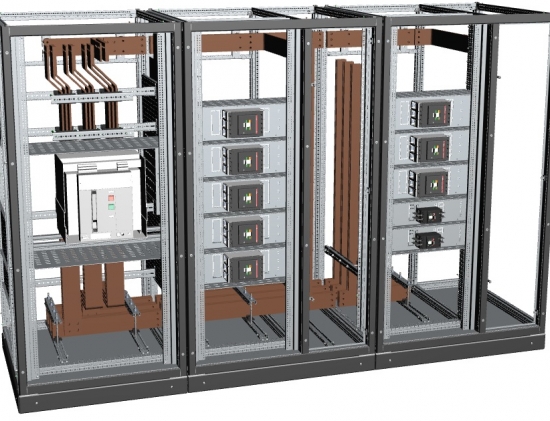

Mounting position: unilateral or back-to-back
Main busbar position: top, rear
Cable connection: from above/below
Resistance to mechanical impacts: IK09 (glass door), IK10 (blind door)
Degree of protection: IP 30, IP 31, IP 40, IP 41, IP 55, IP65
Type of internal separation: 1, 2a, 2b, 3b, 4b
Height: 2000mm, 1800mm
Base height: 100, 200mm
Width: 400, 600, 800, 1000, 1200mm
Depth: 200, 400, 600, 800, 1250mm
IEC 61439-1/-2, DIN EN 61439-1/-2 (VDE 0660 Part 600-1/-2) Power switchgear and controlgear assembly
Vibration test – In accordance with Standard IEC 60068-2-57
Seismic withstand capability test – In accordance with Standard IEEE Std 693.
